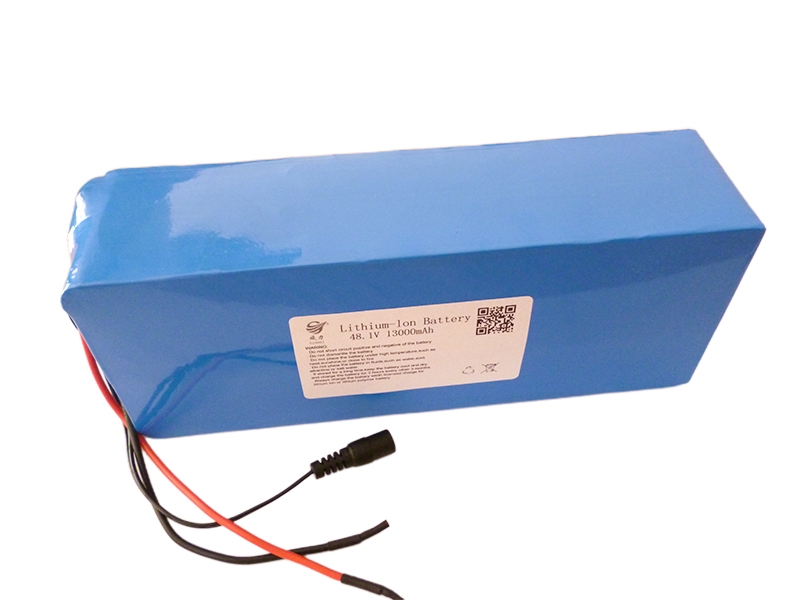

48V power lithium battery product model: XL 48V 13000mAh

48V power lithium battery technical parameters (specifically designed according to customer requirements - voltage/capacity/dimension/wiring)

Single battery model: 18650

· Single battery voltage: 3.7V

· Nominal votage after the battery pack is assembled:48V

· Single battery capacity: 2.6Ah

· Battery combination mode: 13 strings and 5 parallels

· Battery voltage range after combination: 32.5~54.6V

· Battery capacity after combination:13Ah

· Battery pack power: 624Wh

· Battery pack size: 75*100*270mm

· Maximum discharge current: <13A

· Instantaneous discharge current: 30~50A

· Maximum charging current: 0.2~0.5C

· Charge and discharge times: >500 times

· Main chip: (Seiko, TI)

48V power battery

· Conform to relevant national or international battery standards

· All battery products are  tested before leaving the factory
